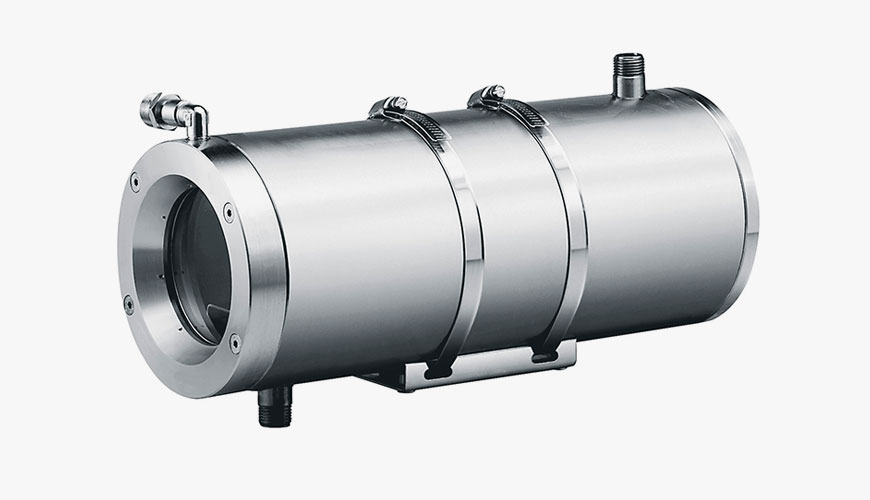

Kamera vhodná pre náročné aplikácie v priemysle. Teleso kamery z nehrdzavejúcej ocele a má dvojitú komoru pre obeh chladiacej kvapaliny. Predná príruba má priezor zo skla odolávajúceho vysokým teplotám.
Pevná konštrukcia tohto kamerového krytu ho robí vhodným pre náročné aplikácie, ako je monitorovanie pecí, zlievární a iných zariadení pracujúcich v prostredí s vysokou teplotou. Kryt je celý vyrobený z leštenej nehrdzavejúcej ocele. Pozostáva z telesa s dvojitou komorou na cirkuláciu chladiacej kvapaliny alebo chladiaceho vzduchu, uzavretej dvoma veľmi hrubými prírubami. Zadná príruba umožňuje prechod kábla pomocou dvoch káblových vývodiek. Predná príruba môže byť vybavená tvrdeným sklom alebo kremenným sklom pre vysoké teploty.
Vlastnosti
- Vyrobené z elektrolyticky leštenej nehrdzavejúcej ocele AISI 316L.
- Oceľová valcová komora pre vnútornú cirkuláciu chladiacej kvapaliny napojená na vonkajší okruh.
- IP66/IP67
- Dodávaná vzduchová bariéra (ofukovanie čelného skla vzduchom).
- 2x káblové vývodky PG13,5 z poniklovanej mosadze pre externé pripojenie.
- Dostupné príslušenstvo: napájanie kamery, vzduchová filtračná, tvrdené sklo (max. 260°C/500°F), kremenné sklo (max. 400°C/752°F), IR odolné sklo (max. 260 °C/500 °F).
Technické údaje
| GENERAL |
|---|
Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat):
|
The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards:
|
| MECHANICAL |
| External body polishing |
| Dimensions (ØxL): 154x375mm (6x14.8in) |
| Internal usable area (WxH): 78x78mm (3.1x 3.1in) |
| Internal usable length: 345mm (13.6in) |
| Internal usable length (with power supply): 223mm (8.8in) |
| 2x1/2”GAS connectors for liquid input / output |
| The flange with air barrier is equipped with a 1/4”Gas thread joint and a reduction from 1/2”Gas to 1/4”Gas. |
| Gaskets: O-ring |
| Flange thickness (back) : 9mm (0.35in) |
| Cable glands: 2xPG13.5 (nickel-plated brass) |
Cooling liquid (application example with incoming water at 20°C (68°F) temperature):
|
Cooling Air (Application example with incoming air at 17°C(62°F) and an environmental temperature at 80°C(176°F)):
|
Air barrier (Flange with 8 holes)
|
Air barrier (Flange with 32 holes)
|
| Unit weight: 10.2kg (22lb) |
| HOUSING'S WINDOW |
| Usable diameter: 95mm (3.7in) |
Tempered extra clear glass
|
Quartz glass
|
IR-proof glass
|
| ELECTRICAL |
| Camera power supply |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50/60Hz - OUT 24Vac, 400mA |
| ENVIRONMENT |
| For indoors and outdoors installation |
Maximum working temperature (with water cooling):
|
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60065, EN62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 |
| IP protection degree: EN60529, IP66/IP67 |
| EAC certification |
| ACCESSORIES |
| NXCTPG13SS: Kit of 2xPG 13.5 stainless steel cable glands IP68 for stainless steel housings |
| ONXWTG: Tempered glass |
| ONXWQG: Quartz glass |
| ONXAB2: Front flange with air barrier and tempered glass |
| ONXAB1025B: Air barrier with IR-proof glass included for NXW housings |
| NXFIGRU2: Filtering group for compressed air cleaning |
| ONXWPS1B: Camera power supply, IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| OHEPS25: Camera transformer, IN 230Vac - OUT 24Vac, 400mA, for housings, NXW, NTW |
| BRACKETS AND ADAPTORS |
| NXWBS1: AISI 316L stainless steel wall bracket with joint |
| NXCOL: AISI 316L stainless steel pole adapter module |
| NXCW: AISI 316L stainless steel corner adapter module |
| NXWTU: AISI 316L stainless steel adapter module for oblique surfaces |
| MHXWFWCA: AISI 316L stainless steel ball joint |
| MHXWBS: AISI 316L stainless steel wall bracket |
| PACKAGE |
| Model Number: NXW |
| Weight: 10.8kg ( 23.8lb) |
| Dimensions (WxHxL)>: 24.3x24.2x49.5cm (9.6x9.5x19.5in) |
