Thermographic camera up to 400°C

The possibility of monitoring the temperature process with a thermographic camera opens up new possibilities for monitoring production processes.

The advantage is that the thermographic camera can, in addition to displaying the observed object, also provide information about its temperature. The temperature data obtained in this way can be used directly to control the technological process. If a thermographic camera is connected to the T-Thermal Monitoring software application, the system can automatically monitor for exceeding the preset temperature thresholds.

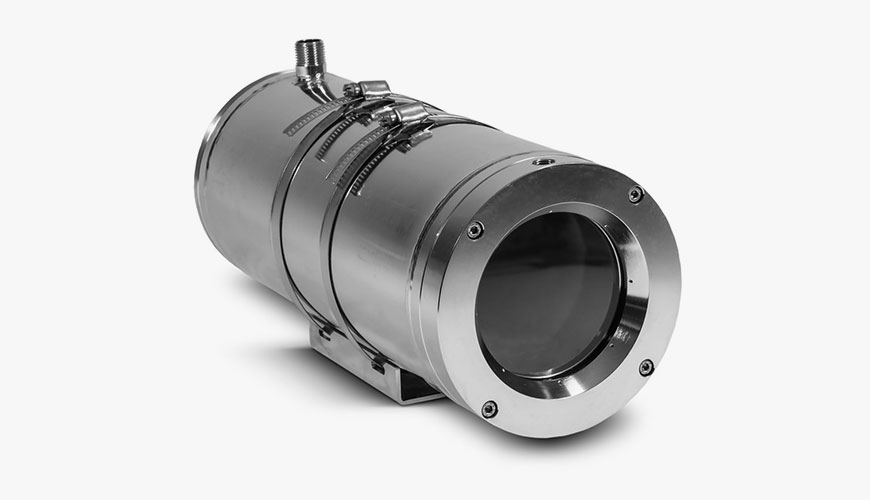

Thermographic camera housing (up to 200°C)

If a thermographic camera is connected to the T-Thermal Monitoring software application, the system can automatically monitor for exceeding the preset temperature thresholds.

The thermographic camera in a heat-resistant housing is suitable for demanding applications in industry, such as boiler rooms, glassworks, incinerators, foundries and others. The camera housing is made from polished stainless steel. Consists of a body with double chamber for the circulation of coolant and two thick flanges. The rear flange enables cable passage using two cable glands. The front flange is equipped with zinc selenide (ZnSe) window for high temperatures.


Features

  • Made of AISI 316L electropolished stainless steel
  • Steel cylindrical chamber for internal circulation of cooling liquid linked to an external circuit
  • Zinc selenide (ZnSe) window, for thermal cameras, wavelength from 7.5μm up to 14μm (up to 200°C/392°F)
  • Sapphire glass window, for shortwave thermal cameras, wavelength from 0.75μm up to 4.5μm (up to 400°C (752°F)
  • IP66/IP67

Specifications

GENERAL
Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat):
  • AISI 316L
  • UNI 6900-71: X 2 Cr Ni Mo 17 12 2
  • DIN 17006: X 2 Cr Ni Mo 17 13 2
  • N° werkstoff: 1.4404
  • AFNOR: Z2 CND 17-12
  • BSI: 316S11
The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards:
  • ISO: 7380
  • AISI: 316
  • ISO quality: A4
  • Resistance class ISO: from 50 to 70
MECHANICAL
External body polishing
Dimensions (ØxL): 154x380mm (6.1x15in)
Internal usable area (WxH): 78x78mm (3.1x 3.1in)
Internal usable length: 345mm (13.6in)
Internal usable length (with power supply): 223mm (8.8in)
Flange thickness (back): 9mm (0.35in)
Gaskets: O-ring
2 x 1/2” GAS connectors control the input/output of fluids
1 x 1/4” Gas threaded joint with a reduction from 1/2”Gas to 1/4”Gas (flange with air barrier)
Cable glands: 2 PG13.5 (nickel-plated brass)
Cooling liquid (application example with incoming water at 20°C (68°F) temperature):
  • ambient temperature 200°C (392°F), water capacity 2l/min, temperature inside housing 32°C (89.6°F)
  • ambient temperature 300°C (572°F), water capacity 2.2l/min, temperature inside housing 41°C (105.8°F)
  • ambient temperature 400°C (752°F), water capacity 6.5l/min, temperature inside housing 44°C (111.2°F)
Cooling Air (Application example with incoming air at 17°C(62°F) and an environmental temperature at 80°C(176°F)):
  • with pressure 1bar, air capacity 10m³/h, temperature inside housing 45°C (113°F)
  • with pressure 2bar, air capacity 15m³/h, temperature inside housing 35°C (95°F)
Air barrier (Flange with 8 holes)
  • Male input 1/2” GAS
  • System pressure: 4bar max
  • Recommended minimum pressure: 2bar
Unit weight: 10.2kg (22lb)
HOUSING'S WINDOW
Usable diameter: 65mm (2.6in)
Zinc selenide (ZnSe) window
  • Thick: 4mm (0.16in)
  • Operating temperature: 200°C (392°F) max
  • Spectral range: from 7.5μm up to 14μm
Sapphire glass window
  • Thick: 1mm (0.03in)
  • Operating temperature: 400°C (752°F) max
  • Spectral range: from 0.75μm up to 4.5μm
ELECTRICAL
Camera power supply
IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A
IN 230Vac, 50/60Hz - OUT 24Vac, 400mA
ENVIRONMENT
For indoors and outdoors installation
Maximum working temperature (with water cooling):
  • zinc Selenide glass: 200°C (392°F)
  • sapphire glass window: 400°C (752°F)
Maximum working temperature with air cooling: 80°C
Relative humidity: from 5% up to 95%
CERTIFICATIONS
Electrical safety (CE): EN60065, EN62368-1
Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3
IP protection degree: EN60529, IP66
EAC certification
ACCESSORIES
NXCTPG13SS: Kit of 2xPG 13.5 stainless steel cable glands IP68 for stainless steel housings
NXFIGRU2: Filtering group for compressed air cleaning
ONXWPS1B: Camera power supply, IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A
OHEPS25: Camera transformer, IN 230Vac - OUT 24Vac, 400mA, for housings, NXW, NTW
BRACKETS AND ADAPTORS
NXWBS1: AISI 316L stainless steel wall bracket with joint
NXCOL: AISI 316L stainless steel pole adapter module
NXCW: AISI 316L stainless steel corner adapter module
NXWTU: AISI 316L stainless steel adapter module for oblique surfaces
MHXWFWCA: AISI 316L stainless steel ball joint
MHXWBS: AISI 316L stainless steel wall bracket
PACKAGE
Model Number: NTW
Weight: 10.8kg ( 23.8lb)
Dimensions (WxHxL)>: 24.3x24.2x49.5cm (9.6x9.5x19.5in)
