AHL-LIGHT 1

LED CAMERA LIGHT

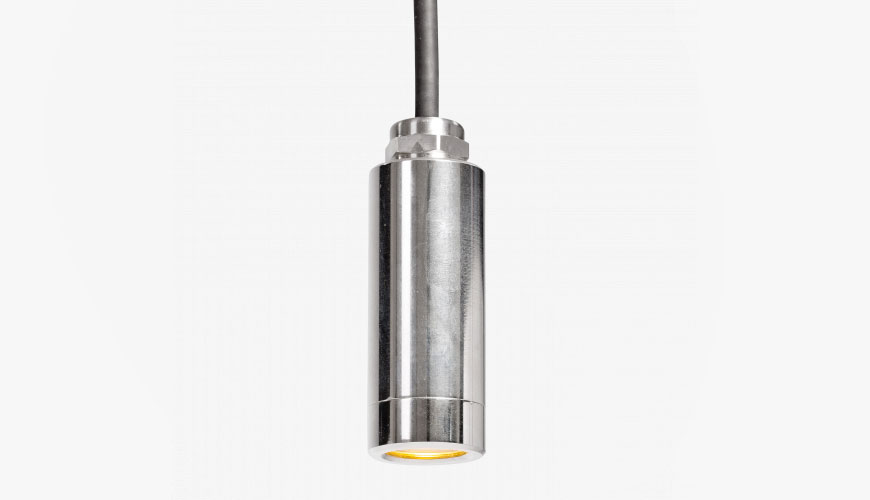

AHLBERG AHL-LIGHT 1

The Ahl-Light 1 is a radiation-tolerant LED light used during underwater inspections of confined areas. The light emits 900 lumen and gives plenty of light without adding significant weight to the system in which it is used.


Features

APPLICATIONS

  • Attaches to tools, robots and manipulators or can hang by its cable.
  • Ideal during inspections of confined areas.
  • Powered by a camera control unit or lighting power unit.

BENEFITS

  • Small-sized and low-weight light
  • 900 lumen light output
  • Color temperature suitable for inspections
  • Low maintenance cost due to its long life-time

Specifications

Diameter 29 mm (1,1")
Height 84 mm (3,3")
Weight 0,3 kg (0,7 lbs)
Housing material Stainless steel EN 1.4301, AISI 304/AISI 316
Front glass material Polycarbonate
Maximum temperature 50°C, 70°C for short periods (122°F, 158°F)
Water tightness min 3,5 bar (35 m)
Lights LED
Typical luminous flux 900 lumen
Lighting beam angle 38°
Life time >50 000 h
Life time >50 000 h
Radiation tolerance (total dose) 50 000 Gy (5 000 000 rad)

DOWNLOAD PDF
